Axial SCX10 With Trail Honcho Body – TR (Trail Ready)

ax90016_pkg-main-image_hires

What is Trail Ready? Exactly what it sounds like… This rig is designed to take-on some of the toughest terrain on or off the trail because it comes fully equipped with all the necessary hardware. All you need are batteries and you’re ready to attack the trails or blaze your own.

SCX10 w/Trail Honcho Body – TR (Trail Ready)

  • Trail Ready (Trail Ready)â„¢. All you need is batteries and you’re ready to hit the trails.
  • 27T Electric Motor: Tear up the terrain indoor or outdoors.
  • Easy Operation: no tuning, no fuel, no loud exhaust noise. Just plug’n’go!
  • 20T pinion paired with an 87T spur gear gives you quick acceleration while still allowing for a smooth low end speed range
  • Durable (ESC) Electronic Speed Controller: Hi-quality durable forward and reverse speed controller.
  • Hi-torque metal gear servo helps hold your line when rock crawling
  • Full ball bearings
  • LED light controller included: 2 white LED’s front, 2 red LED’s rear
  • Based on the popular SCX10 chassis
  • Realistic c-channel steel ladder style frame for that real truck look
  • Moulded plastic skid plate for less hang ups.
  • Realistic shock hoops with multiple mounting positions
  • Coil-over shocks – dual rate springs provide maximum off-road performance
  • Battery tray with Velcro straps makes changing batteries easier and accommodates standard 7.2V stick packs and larger LiPo batteries
  • Enclosed radio box protects receiver and light control unit from dust and debris.
  • Slipper Clutch – enhances the durability of the drive train when in binds
  • Pro-Line Flat Iron tyres with memory foam – Excellent traction and grip on most surfaces.
  • Beadlock Wheels – Real beadlock wheels, never glue tyres again
  • Proven durability – Axles and transmission are directly from the original AX10 Scorpion
  • Trail Honchoâ„¢ Lexan Body
  • Photo-realistic die-cut premium vinyl decals include window frames, headlight, grille, tail lights and more!
  • Pre-painted in an OD green with clear windows.
  • Made from durable .040” clear polycarbonate lexan for long life.
  • Realistic lexan cab and diamond plate bed insert with composite plastic molded rear cage.
  • Moulded plastic spare tyre carrier/mount.
  • Realistic LED headlight buckets.
  • Durable composite rock sliders protect your body from damage and allows you to slide over rocks
  • Realistic tube style front bumper with aluminum skid plates.
  • Functional spare tyre/wheel included!
  • Additional LED light bucket set – Includes 7 different styles of light buckets to hold 5mm and 3mm LED lights. Also has realistic plastic lenses.
  • All hex socket hardware.

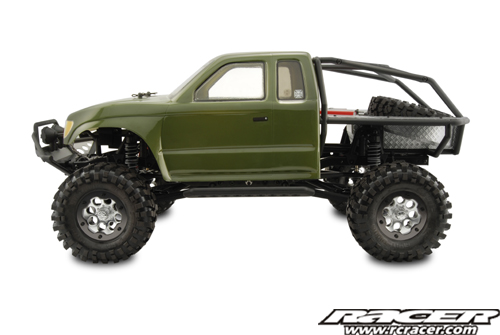

ax90016_side-view_hires

Specifications

Chassis Dimensions

  • Wheelbase: 313mm (12.3”)
  • Width: 227mm (9”)
  • Height: 150mm (5.9”)
  • Weight: 1814g (4.0 lbs)
  • Ground Clearance: 68mm (2.7”)
  • Body Dimensions
  • Length: 457mm (18”)
  • Width: 216mm (8.5”)
  • Height: 137mm (5.4”)

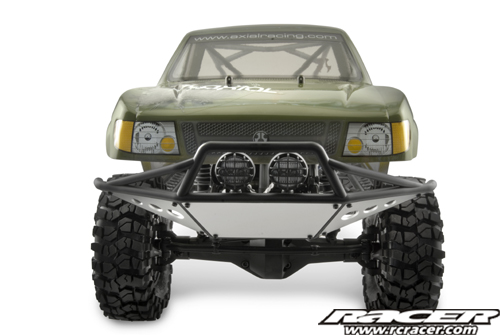

ax90016_front_0202_hires

Electronics

  • Radio: 2 Channel
  • Servos: 1 (Standard Size)
  • Forward/Reverse ESC
  • Motor: 27T 540/550 Size
  • Simple LED Controller: 2 white LED’s, 2 red LED’s

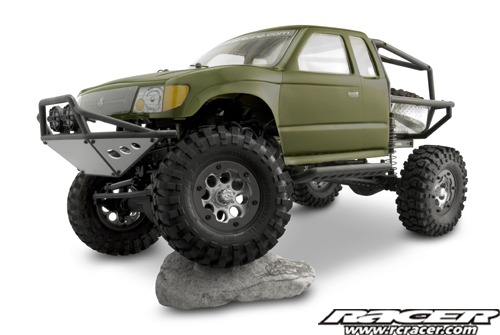

ax90016_three-qtr_main-image_hires

Required Items

  • (1) 7.2v Stick Pack Battery
  • (8) AA size Batteries

AX90016   Axial SCX10 – 1:10 Scale Electric 4WD Truck w/Trail Honcho Body – TR (Trail Ready)



Source: Axial Racing
