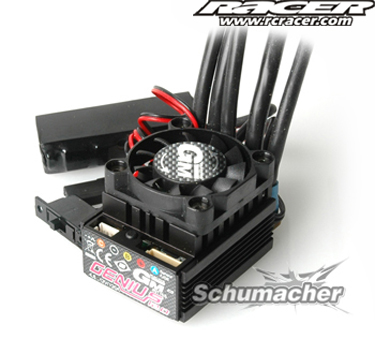

GM-Genius 120 Brushless Speed Controller
New for 2010 is the the GM97168 GM-Genius 120 Brushless Speed Controller. The choice of a host of top UK drivers during 2009 including Chris Grainger, Colin Price, Chris Ashton, Matt White and many more, development has continued at a pace to bring you the 2010 spec with even more features but now more simple to use software.
Achievements
- BRCA English Championship 2009, 2008 and 2007 touring car modified: Chris Grainger
- Austrian Championship Touring Car modified 2009: Martin Schuster
- 3-way victory in the German Championship 2009 Off-Road 4WDST
- Belgian Touring Car Champion modified 2009: Oliver Bultynck
- German Championship 2008 EGTWMO: TQ + double victory by Marc Fischer and Martin Hofer
- Portuguese champion 2008
- Austrian champion 2008
- Danish Outdoor 2008 runner-up Jonas Kærup Danish champion and 2008 Indoor
Features
- Cooler operating temperature by complete and lightweight aluminium housing and special PCB design with extra-thick copper traces and optimized switching flanks. With low-profile design extremely low centre of gravity
- High efficiency due to new or faster 16-bit processor and optimised software easier with new operating software. This more driving and more power.
- For brushless motors (see Power) and brushed motors (up to 7.4 V)
- Telemetry functions
- Hall Automatic sensor recognition
- Save / read by Max. Speed, maximum current, temperature
- New Brake and Power Programs
- 10 User programmable modes
- User updateable firmware
- Lötsockel for easy replacement of cables
Programmable functions
- With on / off switch
- Unterspannungsabregelung: Adjustable Automatic for Li-/Ni battery or 0.1 V steps
- Automatic brake, brake minimum, maximum braking, emergency braking, ABS braking function
- Maximum reverse, different Rückwärtsmodi
- Automatikgas
- Soft start, Softbremse
- Current limit, current limit start, turbo
- Transmitter stick positions: Full Throttle point zero, Vollbremsepunkt, Nullpunktbreite
- Timing, Variable Timing Functions
- 16 power curves for 3T – 21.5 T
- Switch settings for temperature, sensor mode, Bremsmodi, type of engine
- Frequency 0.25 – 32 kHz
- Other functions see PC software!
Specifications
- Recommended Motors: Sternwicklung> = 3.0 T, Deltawicklung> = 5T at 6V / Sternwicklung> = 4.0 T, Deltawicklung> = 7T at 7.4 V
- Overtemperature protection: programmable
- Weight with cable: 99 g
- Reverse: programmable
- Weight without cable: 64 g
- Cell count Pb: 3 to 6
- R DS on the FETs at 25 ° C: 0.0004 Ohm Watts
- BEC: 5.8 / kurzz. 4 V / A
- Clock Speed: 0.25 / 0.5 / 1 / 2 / 4 / 8 / 16 / 32 kHz
- BEC max. Power dissipation: 2.5 W
- Voltage drop @ 20 A: 0.008 V
- Continuous current at 25 ° C: (brushless motors) 120 A
- Cells LiPo, Lilo: 2 to 3
- Pulse current at 25 ° C: 800 A
- Cells NiCd, NiMH: 4 to 10
- Approximate Dimensions: 44 x 31 x 27 mm
- Operating voltage: 4.8 … 12 V
- USB Driver download
- V1.5.0.9 Software Download
GM97168 GM Genius 120 BL-ESC 120 V2010 £210.00
Source: Schumacher Racing
