New Schumacher Cougar SV – More Details and Pics!

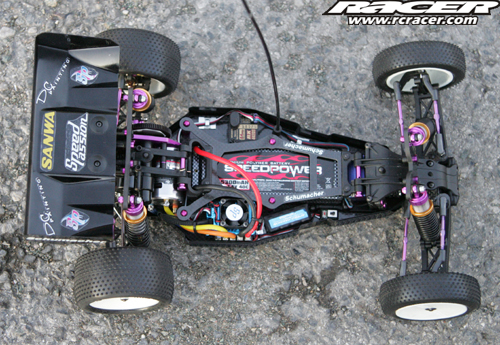

MO3O0132

Here is the all new Schumacher Cougar SV, Competition 2WD Off Roader. Schumacher have brought you a tradition of performance technology, with a pedigree second to none, the Cougar SV is no exception.

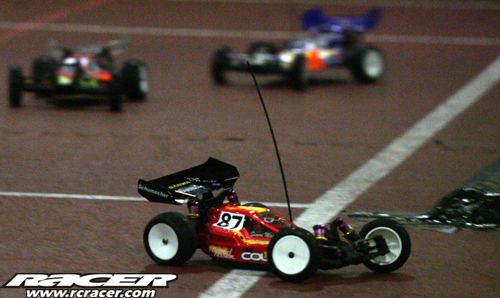

MO3O0148

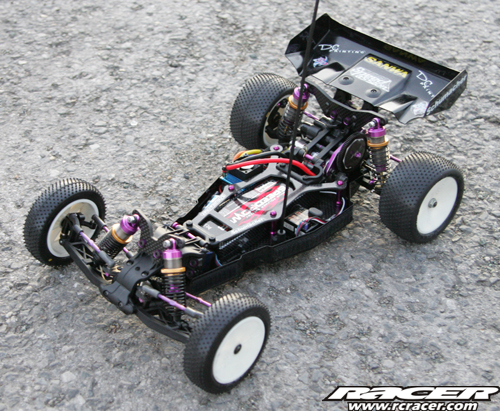

MO3O0135

Engineered by some of the most respected design guru’s in the RC industry, the Cougar SV retains the same Schumacher ethos, yet uses a fresh approach to modern technology.

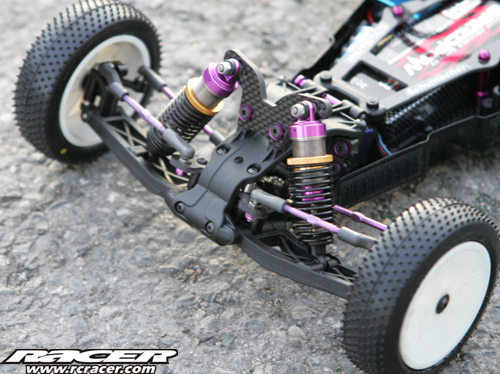

MO3O0136

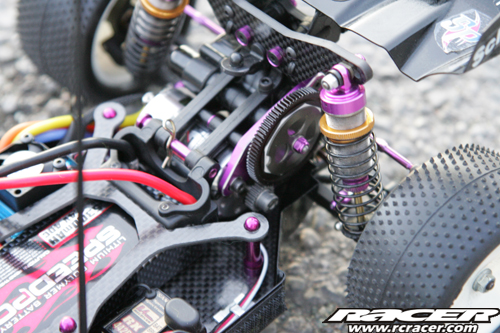

MO3O0138

With its mid-motor position, ultra compact design, perfect centre line balance and revolutionary constant radius steering system the Cougar SV is sure to tear up the track with ease and has already taken a major race win in Simon Moss’ hands, the images here are of his prototype car.

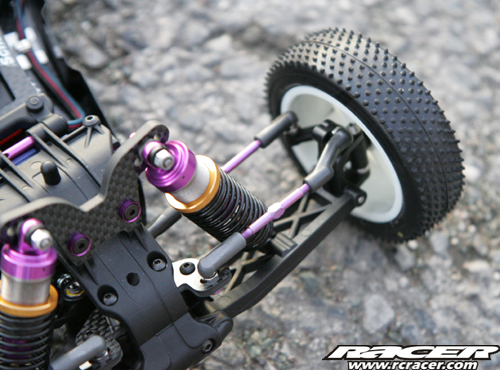

MO3O0140

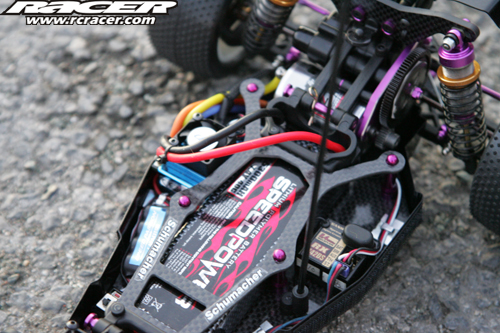

MO3O0137

Features

  • Accepts either stick or saddle LiPo batteries as standard – For superb versatility.
  • Unique constant radius steering system – Offers true ackermann and linear steering response.
  • Mid-motor position – Delivers awesome balance on the track and when jumping.
  • Pro spec 13mm big bore shocks with titanium nitride shafts, CNC machined pistons with recessed ‘e’clips, threaded collars, twin O ring sealing and diaphragm volume compensation.
  • PTFE coated shock bodies – Hard, and super smooth shock action.
  • Quick release topdeck system – For optimised rigidity, yet fast, easy battery removal.
  • Multi position rear shock layout, in front or behind the drive axle – Offers improved suspension tuning for both smooth and heavily rutted track types.
  • Industry standard wheel fitment, with medium width front wheels as standard.
  • Ultra compact transmission design – Minimal weight, with maximum strength.
  • Interchangeable, internal gear ratios – Optimise your gear ratios for all track conditions.
  • All CNC machined geared transmission – Super quiet and efficient.
  • Reverse motor direction – For increased traction under acceleration.
  • Perfect centre line balance – Great control for all track surfaces.
  • Adjustable height differential, with zero geometry change – Allows for optimised driveshaft plunge angle.
  • Multi adjustable bushed pivot control system – Super smooth, multi position suspension action.
  • Fully optimised suspension geometry – Fast, consistent handling.
  • Maximum dimension rear wing – Superb airflow control, offering maximum down force.
  • Aerodynamic body and undertray design – Cool look and great functionality with minimum dirt pick up.
  • Competition pro differential – Small diameter, lightweight unit offering low rotating mass.
  • Purple 7075 T6 alloy motor plate, lower diff mounts, rear suspension pivot straps and front axles. – Strong yet lightweight.
  • 26 piece ball bearing set – Gives silky steering and transmission.
  • High tensile steel, titanium nitride coated shock shafts – Strong with ultimate long life action.



Source: Schumacher Racing
