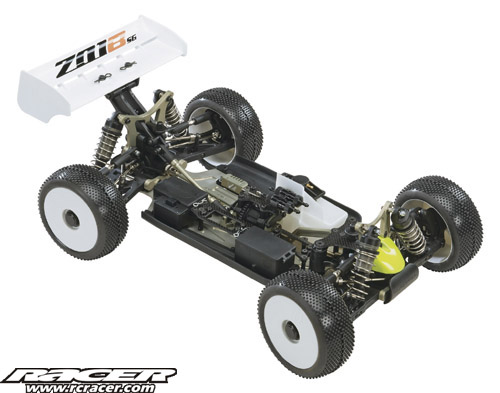

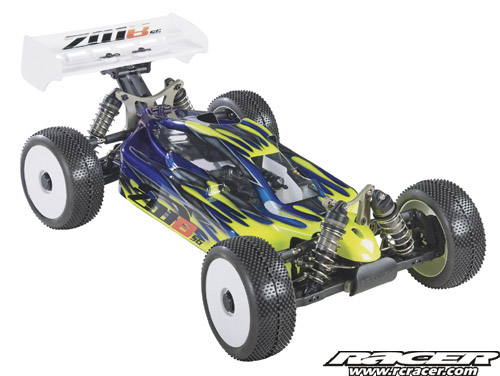

O’Donnell Z01B-SG Team 1:8 Ultra Competition Buggy

O’Donnell have announced their top of the line 1:8 nitro buggy kit, the Z01B-SG Team. Here are some of the details and specifications.

Features

• Stronger, lighter 7075-T6 machined chassis plate with improved weight distribution
• Rear arms with improved geometry
• Rear hub carriers with improved geometry
• Front & rear shock tower with improved geometry
• Stronger CVA axles with large, 3mm cross pin
• New, stronger, front top carbon fibre deck
• New centre carbon fibre top deck
• New carbon fibre radio tray
• Improved, stronger diff cases
• New 4.3:1 diff gears ratio
• New narrow side pods
• New, solid, 7075-T6 billet aluminium torsional front torque rod
• New 7075-T6 billet aluminium rear torque rod with glass filled rod ends
• New full capacity fuel tank
• New, sleek, low profile 20mm narrower polycarbonate body
• New rear precision-wound springs (med, firm & extra firm)
• New super alloy shock shafts with micro finish
• New super alloy hinge pins with micro finish
• New improved droop screws

Specifications

• Length: 20 in. (510mm)
• Width: 12 in (305mm)
• Height: 7.5 in (190mm)
• Weight (approx): 7 lb (3,175g)
• Wheelbase: 13 in (330mm)
• F/R Track: 10.25/10.5 in (260/275mm)

Includes: complete chassis, clear polycarbonate body, nylon wing, wheels, clutch, air filter, dual fuel filters, shock wrenches and manual with set-up tips.

Requires: 2-3 channel radio with 2 servos, .21 rear-exhaust engine, header and tuned pipe, tyres, shock and diff oil & glow fuel

ODOC0114     O’Donnell Z01B-SG Team 1:8 Nitro Buggy Kit

Available Mid-March 2010



Source: O’Donnell
