Team Associated XP/Reedy 1:10 Brushless System





The XP SC450-BL Brushless ESC and Reedy 540R Brushless Motor feature the latest brushless ESC and motor technology along with the design and engineering experience that is responsible for 28 World Championship titles.

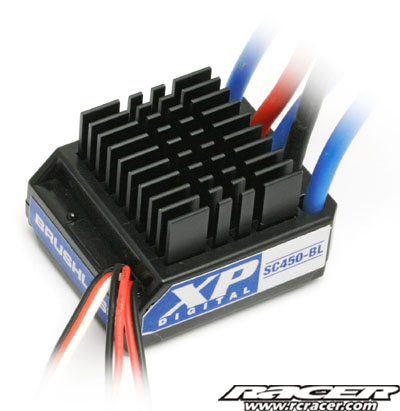

The XP SC450-BL Brushless ESC is light and compact for easy installation in most 1:10 vehicles. Simple calibration and a wide variety of tuning options make this ESC perfect for both casual enthusiasts and racers. Due to its sensorless design, the Reedy 540R Brushless Motor operates powerfully and efficiently without complicated sensor harnesses. This motor is perfectly suited for use with ESCs, such as the XP SC450-BL, that are designed to operate sensorless brushless motors.

When used in combination with one another, you create a potent combination of power and efficiency that brings performance to a new level. More power and less maintenance elevate the fun factor by increasing top speeds and reducing down time.

ESC Features

• LiPo Low Voltage Cutoff
• LiPo Cell Auto Detect
• Reversible With Reverse Lockout
• Fully Proportional Brakes
• Adjustable Drag Brakes
• Adjustable Throttle Profile
• Hard Case with Aluminium Heat Sink
• Heavy Duty Silicone Wires
• Deans Ultra Plug Connector
• 3.5mm Motor Connectors

Specifications

• Cells: 2-3 LiPo, 6-8 NiMh
• On Resistance: 2.5mΩ
• Max. Continuous Current: 45A
• Brakes: Proportional
• Reversible: Yes with Brakes Only Option
• Low Voltage cut-off: Yes, with Cell Auto-Detect
• Motor Limit: 6100kV with 2S LiPo, 3900kV with 3S LiPo
• Overload Protection: Yes
• Set-Up Procedure: Transmitter Based
• Dimensions: 44 x 38 x 28 mm
• Weight: 77g (2.3 oz.)
• Power Wires: 14-Gauge Silicone
• Connector Type: Battery/Deans, Motor/3.5mm

Motor Features

• Oversized precision ball bearings
• High-strength rotor
• Hardened steel shaft
• Triple-insulated windings
• Sensorless operation
• 3.5mm connectors

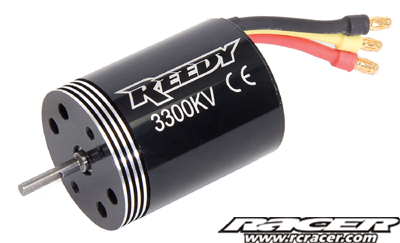

#916    Reedy 540R 3300kV Brushless Motor    $84.99

#917    Reedy 540R 3900kV Brushless Motor    $84.99

#918    Reedy 540R 4900kV Brushless Motor    $84.99

#919    Reedy 540R 6100kV Brushless Motor    $84.99

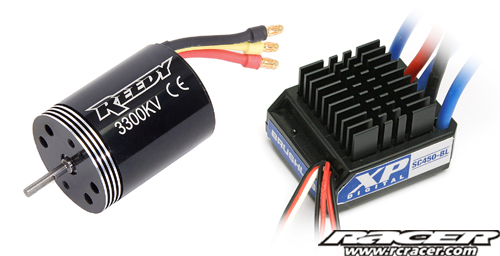

#936    XP SC450-BL ESC/540R 3300kV Combo    $169.99

#937    XP SC450-BL ESC/540R 3900kV Combo    $169.99

#938    XP SC450-BL ESC/540R 4900kV Combo    $169.99

#939    XP SC450-BL ESC/540R 6100kV Combo    $169.99

#29141    XP SC450-BL Brushless ESC    $99.99

All Available April 2010



Source: Team Associated
