Team Orion Experience 2 Off-Road Vortex

ORI65013_2

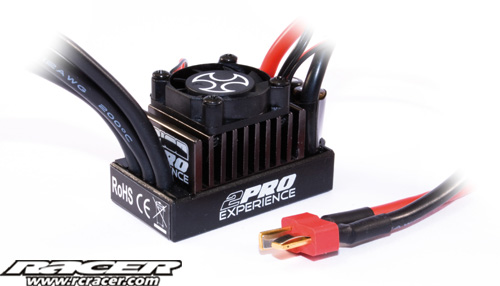

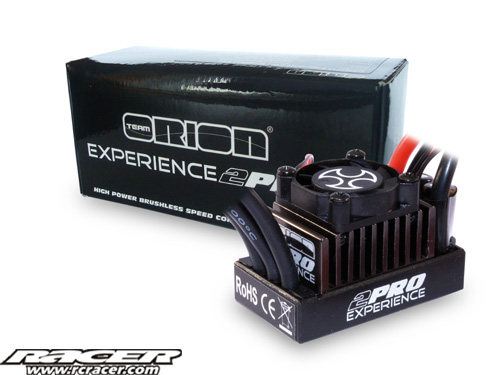

The Team Orion Experience 2 Pro is a sensorless brushless speed control for high torque applications. It delivers maximum acceleration and runtime. The Experience 2 Pro features automatic setup, plug & play technology and is equipped with a Deans high power connector. The forward/brake/reverse ESC is made for 6-7 NiMH/NiCd cells and is LiPo/LiFe ready (2-3S batteries). It delivers 70A continuous and 360A peak current.

Features

  • Sensorless Brushless Speed Control
  • Best for High Torque Applications
  • Forward/Brake/Reverse
  • LiPo/LiFe ready
  • Deans High Power Connector
  • Integrated Cooling Fan
  • Gold Connectors Motor Side
  • Extra Large Cooling Finns
  • Plug&Play Technology
  • Automatic Setup
  • High Quality Silicon Cables

Choose the Experience 2 Pro brushless speed control if you want maximum torque and runtime for a reasonable price. Also available as combo with the Vortex 10 motor (ORI66043).

ORI66043_1

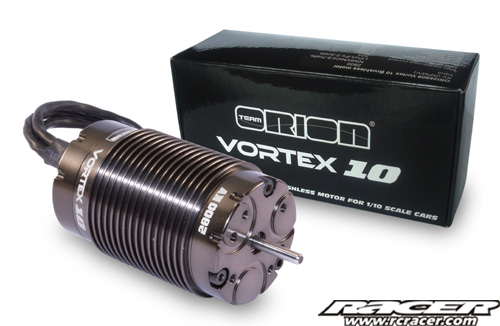

The Team Orion Vortex 10 motor is a 2800KV high torque motor. It was designed for the use in off-road applications such as 1:10 scale buggies or short course trucks.

ORI28809_2

The Vortex 10 features a robust gun-metal casing, integrated cooling fins, multiple mounting holes and can be used with 6-7cells NiMH/NiCd or 2-3S LiPo/LiFe batteries.

Features

  • 550sized Brushless Motor
  • Made for High Torque Off-Road Applications
  • Robust Gun Metal Casing
  • Integrated Cooling Fins
  • Gold Connectors
  • Multiple Mounting Holes

Choose the Vortex 10 brushless motor if you need more torque for your off-road vehicle keeping long run times for maximum fun! Also available as combo with the Experience 2 Pro speed control (ORI66043)

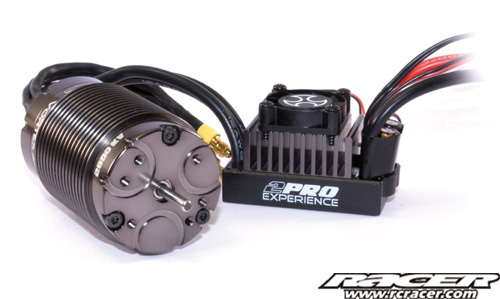

  • ORI66043    Brushless Combo (ESC+motor)
  • ORI66013    Experience 2 Pro Controller
  • ORI28809    Vortex 10 Brushless Motor

ORI65013_1

Specifications

  • ESC (ORI65013)
  • BL system: sensorless
  • Functions: Forward/Brake/Reverse
  • Battery connector; Deans
  • Input voltage: 6-8 cells NiMH/NiCd, 2-3 cells LiPo/LiFe
  • Max current: 70A
  • Peak current: 360A
  • BEC: 6V 2A
  • Weight: 76g
  • Dimensions: 52.5×27.5×32.5mm
  • Pro-Software
  • Can be used with the Vortex 8 DSB (ORI65026)
  • 10T Motor (ORI28809)
  • Input voltage: 6-8 cells NiMH/NiCd, 2-3 cells LiPo/LiFe
  • Max current: 50A
  • Peak current: 100A
  • Resistance: 0.0081Ohm
  • No load current: 2.8A
  • Winding: 10T
  • RPM/V: 2.800KV
  • Shaft length: 14mm
  • Shaft diameter: Ø 3.175mm
  • Dimensions: 39.2×61.2mm
  • Weight: 258g



Source: Team Orion
