Team Associated TC6 Factory Team Kit

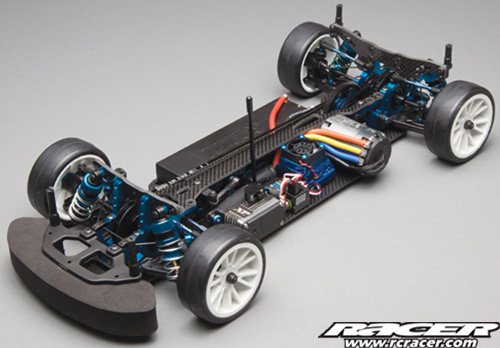

30106-3qtr-left.ps

The RC10TC6 Factory Team kit is the newest edition to the family and legacy of competitive, high performance 4WD touring cars by Team Associated. Designed to take full advantage of all the latest technological advances made in 1:10 scale electronics, the TC6 has been optimised to use all of the benefits offered by brushless motor systems and LiPo batteries. The engineers behind the doors of Area 51 have been hard at work developing the TC6 to blend the best qualities of high performance and adjustability without sacrificing durability or ease of maintenance.

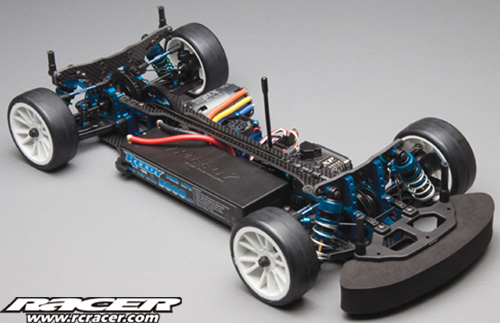

30106-3qtr-right.ps

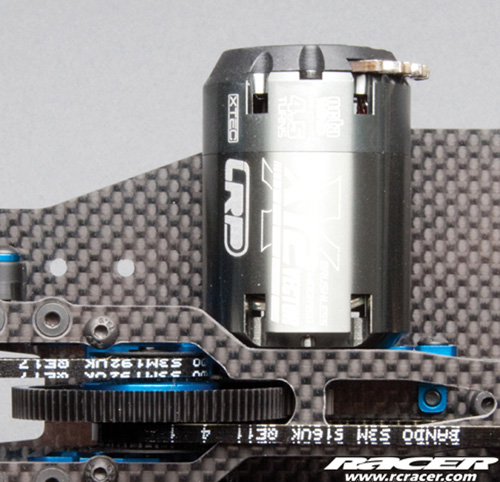

The TC6 takes the same suspension components from the TC5R before it and adds many new features, making it even better. For improved weight distribution, the TC6 motor mount has been moved 13mm closer to the chassis centreline and the spur gear has been lowered 5mm compared to the TC5. These changes result in a more centralised mass and lower centre of gravity for the TC6 chassis. The servo mounting holes are slotted to not only accommodate different servos but also to optimise the position of the servo mass.

30106-front-end.ps

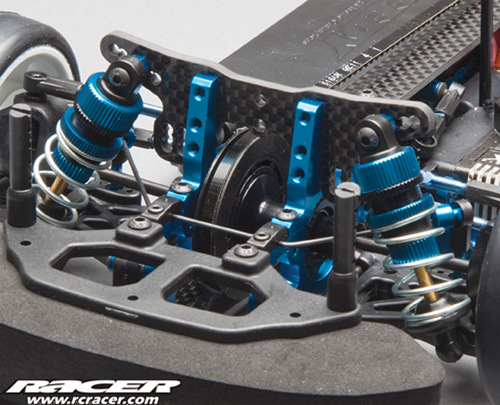

The TC6 includes the Factory Team VCS3 shock package that features hard-anodised threaded shock bodies with bottom-loaded seals. The VCS3 shocks are super smooth and have an increased stroke for more up-travel at the wheels, all adding up to more consistent overall traction.

30106-lipo.ps

An updated steering system with additional Ackermann options and an improved steering input rate gives the TC6 more consistent handling. Blue titanium turnbuckles come with new ballcup eyelets for easier access to the ball studs. These are only a few of the many refinements that can be found in the RC10TC6 Factory Team kit – making it yet another Champion by Design!

30106-motor.ps

30106-rear-diff.ps

TC6 FT Specifications

  • Scale: 1:10
  • Power: Electric
  • Length: 381mm
  • Width: 190mm
  • Weight: 1330g*
  • Wheelbase: 255.5-261.5mm
  • Internal Gear Ratio: 2.0:1
  • Drive: 4WD
  • *Final weight will vary with the actual electronics, body, wheels and tyres used to complete the TC6.

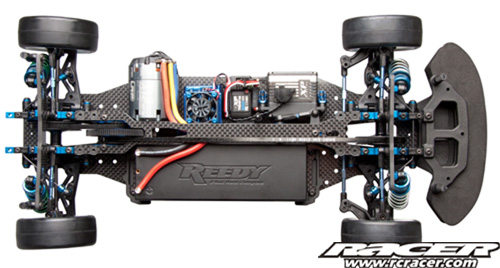

30106-top-white.ps

TC6 Factory Team Kit Features

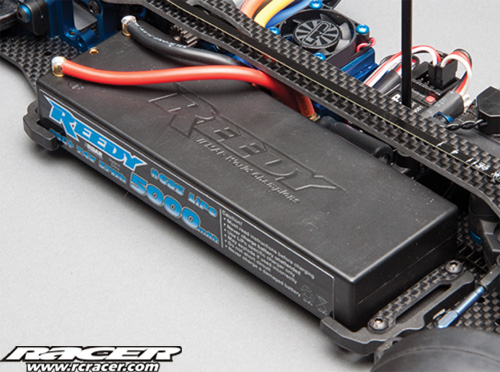

  • Chassis optimised for LiPo batteries and brushless motors
  • Motor moved 13mm in toward the chassis centre, and spur gear lowered 5mm from TC5
  • Servo mounting slots to ensure proper fit of multiple servos
  • Symmetrical bulkheads utilised throughout the TC6 chassis
  • Updated steering system featuring more Ackermann options for improved steering input rate, resulting in more consistent handling
  • VCS3 shock with hard-anodised threaded shock bodies that feature bottom-loaded seals and additional stroke for more up-travel at the wheels
  • Long upper camber link option for increased corner speed
  • Easy-access suspension arm mounting screws thread into bulkheads
  • Titanium turnbuckles with new ballcup eyelets for easy access to ball stud

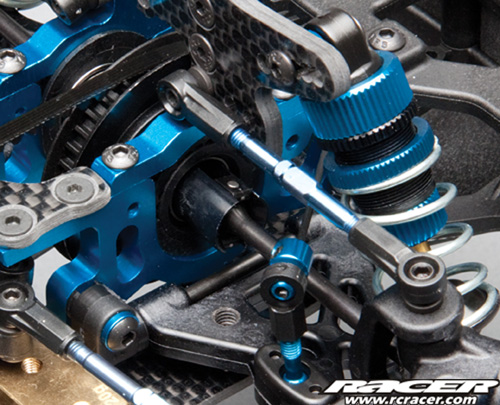

  • Hard-anodised diff outdrives for low wear and long life
  • 20 precision ball bearings
  • Cross-compatibility with TC5 suspension components
  • Hardened steel CVAs with cross-pin retaining clips
  • Front and rear anti-roll bars included
  • Belt drive with adjustable differential heights and belt tension
  • #30106    TC6 Factory Team Kit    MSRP: $649.99
  • Available October 2010



Source: Team Associated
