Avid RC RC8.2 1mm Offset Insert Bushings

Avid RC’s series of 1mm Offset Insert Bushings allow for a new range of tuning using your kit supplied suspension mounts. After hours of testing, the Avid team is offering up this simple solution to allow racers to customise their suspension to get lower rear roll centres and adjust rear toe-in to 1,2,3, 4 or 5 degrees as well as being able to move all of the other pivots on the chassis.

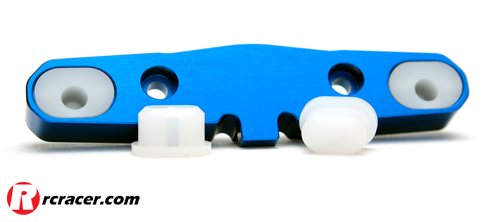

The 1mm offset lowers the rear inner arm pivot for a lower roll centre when used in D-plate. They are precision machined from Delrin with dot indicators, “L” and “R” noted on 2-dot, 3-dot versions. The inserts also fit the #89461 Front B-plate to lower the front roll centre to a middle location between the standard RC8B and the RC8.2 low B plate. They work with Ghea RC8.2 rear pivot blocks to change toe-in from 3 to 2, 4 or 5-degrees. They also fit the RC8.2, RC8.2e, RC8T CE, RC8B and each package includes four inserts whilst the complete set totals 12 inserts.

Part Number     Description                                    Rear Toe      Qty
AV1804-SET       1mm Offset Insert Bushing Set             all                12
AV1804-1DOT     1mm Offset Insert Bushings, 1-Dot       3-degree        4
AV1804-2DOT     1mm Offset Insert Bushings, 2-Dot       4-degree        4
AV1804-3DOT     1mm Offset Insert Bushings, 3-Dot       5-degree        4

Source: Avid Racing Concepts
