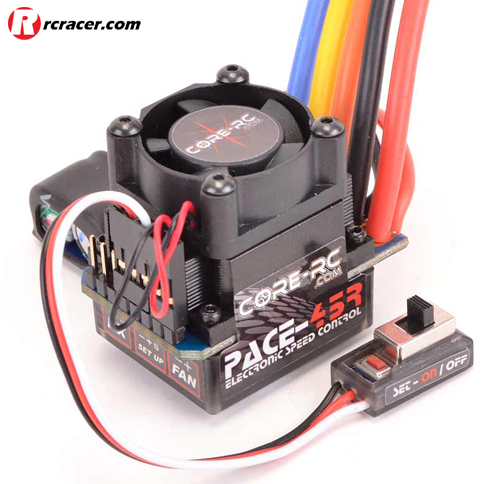

Core RC Pace 45 Brushless Speed Control

PACE_45-1

The new Core RC Pace 45 brushless speed control has been exclusively designed to suit 1S (3.7V) LiPo running for single cell GT12 classes of racing but also perfectly capable of running with 2S (7.4V) batteries with motors of 10.5T and higher. It is suitable for sensored or sensorless operation with zero timing (blinky) mode as standard but additional timing programmable via the optional program card. The Pace 45 requires no additional booster for 1S use.

Specification:
1-2S LiPo or 4-6 NiCd/NiMH input
Forward/brake/reverse or forward/brake option
Adjustable low voltage cut-off protection
Easy single step set-up system
Digital program card available
Sensored or sensorless operation
Heatsink and fan included
10.5T motor limit
Zero timing (blinky) mode
Optional programming card

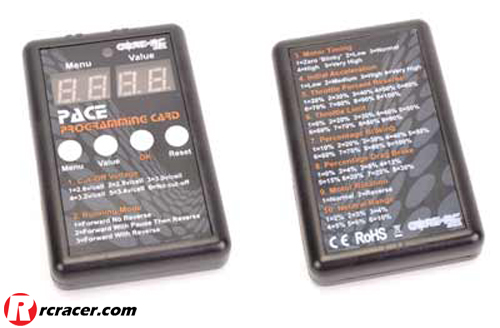

CR174

The program card (CR174) allows multiple adjustments including:
1. Cut-Off Voltage
2. Running Mode
3. Motor Timing
4. Initial Acceleration
5. Throttle Percent Reverse
6. Throttle Limit
7. Percentage Braking
8. Percentage Drag Brake
9. Motor Rotation
10. Neutral Range

CR173        Core RC Pace 45R Brushless Speed Control 1S/2S     £49.99
CR174        Core RC Pace 45R Programming Card      £9.99

Source: Schumacher Racing
