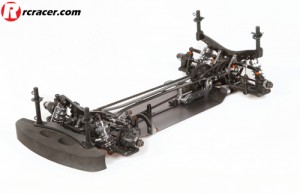

serpent-eryx-3.0The ERYX 3.0 is Serpent’s next big development stage for their 411 platform. Featuring an ultra low centre of gravity, optimised weight distribution, high performance geometry and top quality materials throughout. Here are the key new items of the ERYX 3.0:

2mm 7075 T6 aluminium chassis
Lighter upper and lower bearing blocks, identical front and rear
Centrally mounted new lower C of G 7075 T6 motor mount
Separate bushing to support the top-plate to influence flex
Lightweight aluminium spool with blades
Slop-free steering assembly with pressed in bearings
v2 hard composite wishbones, uprights, caster blocks
v2 hard composite wishbones with single hole for shock mounting
Rear anti-roll bar mounted in front of rear arm
Tapered composite anti-roll bar holders
Front double joint v2 cardan shaft with clips
3.5/0.5 split blocks for the rear
2/0.5 split blocks for the front
New material shock O-rings
Lightweight anodised aluminium camber links
Lightweight anodised aluminium track rods

Source: Serpent
