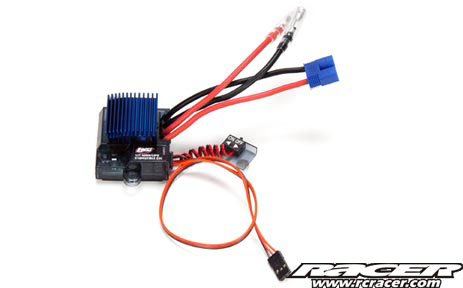

Losi MSC12L Electronic Speed Controller

b_msc12l

Losi have a new electronic speed controller available, the MSC12L. This forwards and reverse unit has a great price and is compatible with the latest LiPo batteries too. Other features in it’s compact dimensions include a Time Delay Brake and 1000 amp momentary peak forward current rating.

MSC12L Specification

  • Forward: Yes, proportional
  • Reverse: Yes, proportional
  • Time Delay Brake: Yes
  • Input Voltage: 4-cell (4.8 volts) to 6-cell (7.2 volts) DC NiMh or 2S (7.4 volts) LiPo
  • Momentary Peak Current: 1000A Forward and 350A Backwards
  • Dimensions (WxLxH): 40 x 40 x 27 mm (1.575 x 1.575 x 1.063 inches)
  • Weight: 53g (1.87oz)
  • BEC Voltage: 5V DC, 1 amp max. at 7.2V
  • PWM Frequency: 1kHz
  • Overload Protection: Thermal
  • Full On Resistance: 0.0014 Ohms Forward and 0.0028 Ohms Backwards

AB9522     Losi MSC12L Forward/Reverse ESC, LiPo Cutoff     RRP £39.99



Source: Horizon Hobby UK
