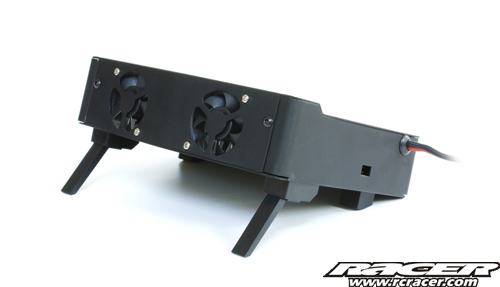

Team Orion Advantage Pro Spec Charger


The Pro Spec is the most powerful charger of Team Orion’s Advantage line. It is capable of charging LiPo and LiFe batteries of one to six cells and NiMH/NiCd batteries of up to 16 cells. Of course, Pro Spec features Oscar Jansen’s latest charging technology which reveals the real potential of your batteries. The Pro Spec is a real all-rounder: use it to charge your car LiPos, your plane batteries or receiver packs. No matter which battery technology, with the Pro Spec you can’t be wrong!


Key Features

  • Microprocessor controlled advanced digital circuitry
  • Charging Mode: fast charge, CC/CV and special storage mode
  • Charging Capability: NiMH/NiCd 1-16 cells, LiPo/LiFe 1-6 cells
  • Charge current: Adjustable 0.2-10A for 1-10 cells NiCd/NiMh – 2S-4S LiPo/LiFe, 0.2A- 5A for 11-16 cells NiCd/NiMh – 5S-6S LiPo/LiFe)
  • Balancing: adjustable on/off
  • Delta peak: adjustable 0-20mV/cell
  • Discharge Current: adjustable 0.1-10A (variable with number of cells, 75W max)
  • Discharge Cut-off Voltage: adjustable
  • User Profile Memory: 10
  • Display: Laser Blue LCD
  • Multi-Protection System: Input and output reverse polarity protection
  • Input Voltage: 10-15 VDC
  • Dimensions: 155x120x50mm
  • Weight: 702gr


Source: Team Orion
