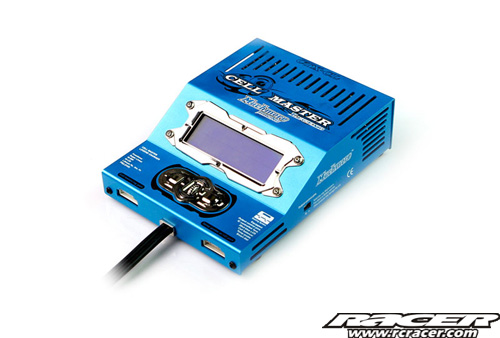

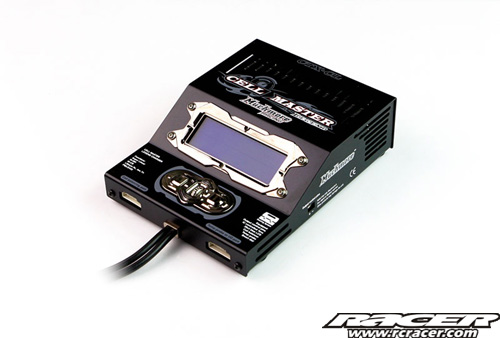

Much More Cell Master Legend Charger

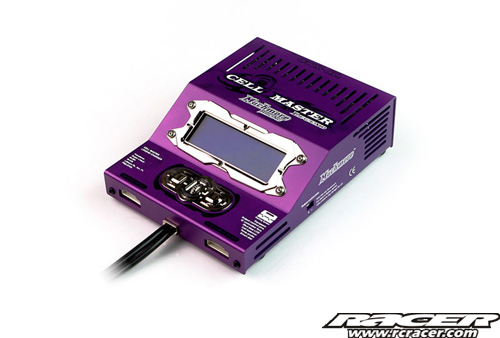

Much More Racing have released details of their Cell Master Legend. This new 12VDC input charger is available in the usual choice of colours and has a whole host of features, capable of taking care of all your charging needs.



Features

• Quick setting button and up down scroll wheel
• Blue back light LCD display with 20×4 characters
• The highest specification in the world
• Individual lithium cell balance circuit
• Individual cell voltage realtime monitoring
• Lithium batteries Race and Storage charge Modes
• Lithium battery conditioning
• Cycling – Charge/Discharge
• Compact user interface and program
• Designed for perfect charge
• Arrow state indicator

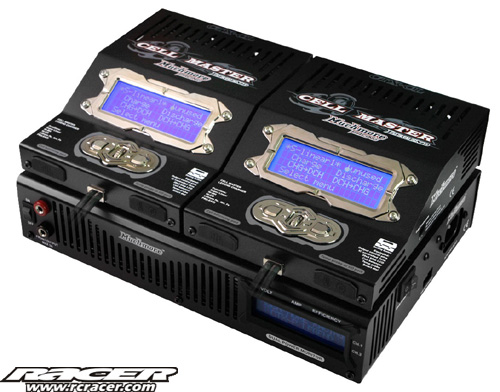

• Docking system for beautiful pit area
• I/O Port for software upgrade and Much More Racing future products.
• Maximum safety

Specification

• Dimensions: 29x70x46mm
• Weight: 660g
• NiCd,NiMh No. of cells: 1~14
• LiPo,LiFe LiMn,Lilo No of cells: 1~6
• Pb Battery voltage: 2~20V
• Charge current: 0.2~16.0A(adjustable) Max 250Watt NiMh, NiCd 0.2~10.0A(adjustable)
• Discharge current: 0.2~10.0A(adjustable) Max 80Watt
• Cut-off Voltage: S-Linear 0.2~9.9V(adjustable) LiPo, LiFe, Lilo, Pb(Auto)
• Input Voltage: DC10.0~13.8V
• Charging Capability: 10~9990mAh(adjustable)
• Charging Modes: S-Linear & Easy NiMh, NiCd charge, LiPo, LiFe, LiMn, Lilo, Pb
• Voltage Threshold/Delta Peak: S-Linear 3~99mV/pack Easy NiMh, NiCd/3stage adjustable
• Thermometer sensor: 15~70 degrees Celsius
• Keys: 2 button & 1 up down Scroll Wheel
• Cooling: IC controlled dual fans
• LCD monitor: 20×4 lines Blue LCD display



Source: Much More Racing
