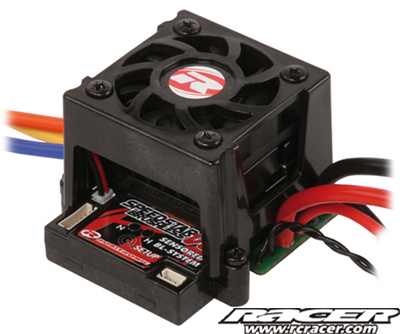

Robitronic Speedstar Brushless 1:8 Speedo

This new Speedstar Brushless 1:8 Speed Controller from Robitronic is built to the highest standards, universally applicable for brushless motors with sensor and also useable for conventional brushed motors.

Features

• Forward, reverse and breke
• For brushed and brushless sensored motors
• Very smooth throttle response
• For competition reverse can be switched off
• Useable with LiPo, LiFe, NiMh and NiCd
• Big power condenser
• Selectable current limiting
• Adjustable power curves and motor timing
• Adjustable break
• Intelligent fan control
• With threefold safety (temperature, overload, low voltage)

Specification

• Case Size: 56.5×54.5x45mm
• Weight w/o wires: 150g
• Cell No (NiCd, NiMh): 6-14
• Cell No (LiPo, LiFe): 2-4
• On-Resistance Brushless/Brushed: 0,0013 Ohm/Phase
• Rated Current Brushless/Brushed: 520A / Phase
• On-Resistance Brushed Fwd/Brake: 0,0002 Ohm
• Rated Current Brushed Fwd/Brake: 1560A
• B.E.C. Volt/Amp: 6.0V / 3.0A
• Motor Turn Limit Brushless: 4.5 Turn
• Motor Turn Limit Brushed: 7 Turn

R01210     Robitronic Speedstar Brushless 1:8 Speedo



Source: Robitronic
