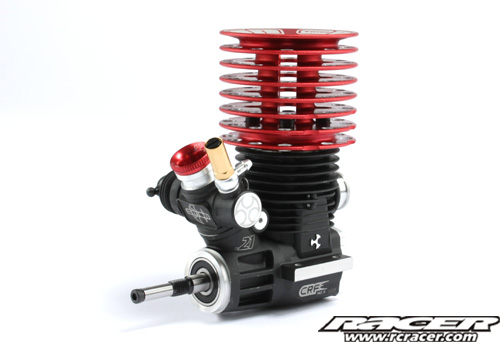

New Team Orion 5 Port Off-Road Competition Engine
Team Orion have added a new five port powerplant to their range of CRF competition off-road engines.
Features
- High-performance competition engines
- CRF crankshaft with angled gas channel and external slots
- High-performance ABC liner
- Two needle carburettor with aluminium body
- High quality, custom made ball bearings
- Optional carburettor inlet venturis available
- Improved throttle response characteristics
- Increased fuel economy
- Lightweight high efficiency cooling head
- SG crankshaft
Technical Specifications
- Type: 2-stroke
- Displacement: 3.5cc
- Bore: 16.2mm
- Stroke: 16.9mm
- Total Weight: 350 g
- RPM : up to 35,000
- HP: 2.95
- Front Bearing Size: 7mm x 19mm x 6mm Swiss Ball Bearing
- Rear Bearing Size: 14.2mm x 25.3mm x 6.3mm Special Ceramic
- Cylinder Type: ABC
- Ports: 5 +2 Bypass
- Carb Type: Slide with Aluminium Body
- Crank Type: SG-type with Patented CRF Concept
ORI80679 3.5 cm³ CRF 3.5ccm Off-Road Engine (ABC/5 port)
ORI80680 3.5 cm³ CRF 3.5ccm Off-Road Engine (ABC/5 port), set w/ pipe
