Team Xray T3 ’11 – The Saga Continues

DSC7086

Xray has long been viewed as the highest-quality and best-performing touring car available since it arrived on the RC car scene in 2000.  Now with a long and distinguished history of racing achievements and groundbreaking, award-winning innovations, Xray is proud to offer the 2011 version of the T3 platform… a top-quality “no-compromise” engineering marvel designed to put you in the Winners Circle.

Revolution, evolution, optimisation… those are the key terms that describe the T1 and T2 platforms brought forward to the racing world in the last decade, and the new T3 carries with it all the heritage and racing pedigree to again raise the standard even higher. Xray Research & Development along with the Factory Team have devoted themselves to extensive testing, all in the effort to bring to the consumer the latest evolution year after year. The T3 platform has been redesigned and improved for 2011, raising the bar once again. No extras needed… just a desire to win.

  • Dipl. Eng. Juraj Hudy
  • Chief Engineer, Xray

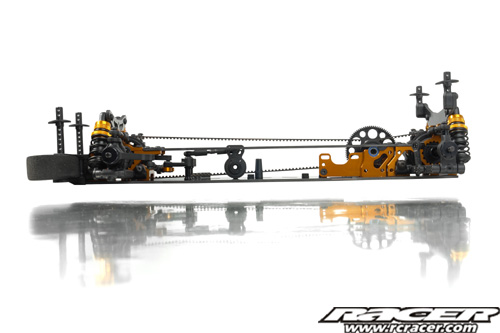

DSC7099

T3’11 New Features

  • All new ultra-narrow chassis specifically designed for LiPo batteries
  • New centrally-positioned dual steering system
  • Improved cornering speed and increased out-of-corner steering
  • Easier to drive, especially in high-traction conditions
  • Horizontally-oriented servo with servo saver positioned in absolute centre of chassis
  • Steering is independent from chassis flex, ensuring tweak-independent steering for super precise and constant steering characteristics
  • New narrow chassis layout, together with horizontal servo placement, creates centralised weight positioning
  • New redesigned top deck for dual steering system was specially shaped to create more traction, stability and steering
  • Extra steering stands allow connection to steering system via top deck, making for a stiffer car and minimizing tyre overheating on high-traction carpet tracks
  • New LiPo-specific composite battery holders prevent batteries from moving in crashes
  • Xray Multi-Flex Technology adapted to the T3’11 top deck design allows flex adjustment to adjust car stiffness for particular track conditions
  • low-profile shock absorber membranes for easier shock dampening adjustment

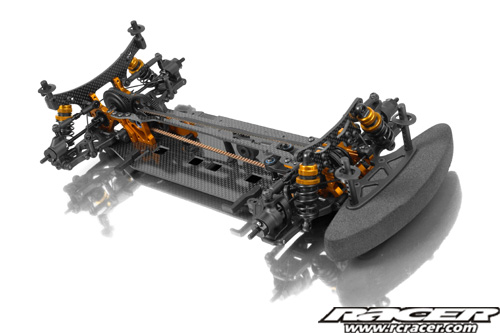

DSC7107

Main Features

  • Based on the T3 platform, fully compatible with majority of spare parts and option parts
  • Suspension holder system allows suspension arms to be mounted independently from diff bulkheads
  • Direct independent suspension alu holders mounted directly to the chassis, allowing for elongated chassis flex to generate more traction
  • Independent suspension holders allow for more precise and fine set-up adjustments via different-thickness shims
  • Motor mount purpose-designed for brushless motors, placing the motor 3mm more towards the centreline
  • Rear suspension holders positioned towards the centreline results in narrower rear track-width and more rear traction
  • Rear aluminium rear suspension holders feature integrated toe-in
  • 1-piece top deck features layshaft composite holders to allow the top deck to be mounted to the rear bulkheads independently from the central layshaft bulkheads
  • Motor holder connects the motor mount bulkhead to the centre of the chassis, thus transferring the flex effect of the motor mount into the absolute centreline of the chassis
  • Layshaft bulkheads are independently mounted from the top deck for better flex adjustment
  • 38/20T (1.9) internal gearing for improved drivetrain efficiency and performance
  • Eccentric front and rear roll centre holders with more inner camber link positions for better balance and handling
  • Updated front steering blocks provide increased steering angle for more steering and higher cornering speeds
  • Lightweight black-anodized Swiss 7075 T6 aluminium turnbuckles
  • Super-lightweight Swiss 7075 T6 aluminium rear drive shafts, hard-anodized, colour-coated and laser-engraved, 38% lighter than standard drive shafts
  • Super-light drive axles with 35% less rotating mass
  • Orange-anodized aluminium parts for stylish and distinctive look
  • Reduced sensitivity to changing track conditions, giving super-consistent performance during runs
  • Super-smooth adjustable Swiss 7075 T6 aluminium ball-differentials with Xray Labyrinth Dust Covers
  • Centred layshaft and split bulkheads provide optimum balance due to perfect weight distribution of the motor towards centreline, giving quicker left-right transitions
  • Ultra-light bulkheads CNC-machined from premium Swiss 7075 T6 aluminium
  • Motor mount bulkhead features the lowest possible motor position, compatible with stock / modified / brushless motors
  • Super-light composite front Solid Axle with Xray’s own smart quick-change outdrive system for easy outdrive exchange; no servicing or replacement of drive shaft blades needed, translates into reduced servicing costs
  • Specially-optimised drive shaft lengths for rubber-tire racing conditions ; longer 52mm front/rear CVD drive shafts positioned more towards centreline in diff/solid axle outdrives generate more overall traction and make the car easier to drive on low-traction tracks
  • Independent front and rear diff height adjustment; belt tension adjustment in both front and rear bulkheads
  • Long front & rear suspension arms for improved traction and easier handling feature optimised shock mounting positions
  • Suspension arms feature integrated anti-roll bar mounts; rear arms feature 3 different anti-roll bar mounts for super-fine adjustment of the rear anti-roll bar
  • Includes both front and rear anti-roll bars (front 1.4mm & rear 1.2mm)
  • C-hubs with large openings for quick and easy assembly/disassembly of the CVDs; prevents collision of CVD with C hub in serious crashes (compatible for the ECS drive shafts)
  • C-hubs available in standard caster angles (2°, 4°, 6°); available in two hardnesses (M – medium, H – hard)
  • Rear uprights with integrated 0° toe-in prevent suspension geometry changes in serious crashes; available in two hardnesses (M – medium, H – hard)
  • Steering blocks available in two hardnesses (M – medium, H – hard)
  • Front & rear shock towers machined from premium 3.0mm graphite material, featuring Quick Roll Centre positions and optimised shock absorber positions
  • C2.6 and C3.0 racing springs
  • 84T 48P spur gear  – extra-hard material, wobble-free design
  • EFRA, ROAR, FEMCA spec compliant for modified and stock racing

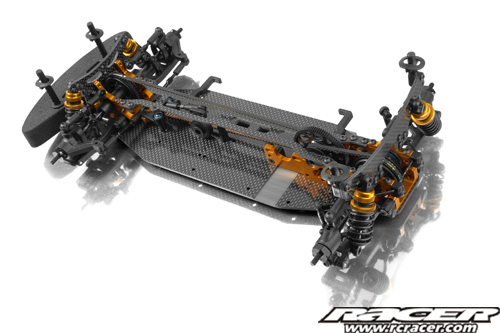

DSC7171

Other Specifications

  • Xray Quick Roll-Centers – 4 quick roll centre adjustments in front and rear
  • Rebuildable front CVD drive shafts made from special world-renowned, top-secret, self-developed HUDY Spring Steelâ„¢; world’s tiniest yet most durable drive shafts are hand ground for maximum precision. Recommended for use in front for increased durability
  • New super-lightweight wheel axles manufactured from premium HUDY Spring Steel
  • Premium-quality, Kevlar-reinforced drive belts
  • Lightweight middle layshaft CNC-machined made from aircraft aluminium
  • Front upper and lower composite bumper made from special composite material to withstand hard impacts
  • Compact front foam bumper made from lightweight, high-resilience foam
  • Thick 6mm body posts withstand hard crashes
  • Lower suspension holders with three different roll centre positions offer additional ultra-fine roll centre adjustment via different-thickness shims
  • Easily adjustable inboard toe-in using included shims
  • Easily adjustable wheel offset using optional shims or optional offset wheel hubs  (-0.75mm, +0.75mm, +1.5mm)
  • 7075 T6 aluminium wheel hubs
  • Short Xray 4-step externally-adjustable shocks
  • Shock shafts are specially hardened for maximum strength
  • Shock absorber foam inserts for perfect shock rebound
  • Xray self-developed and manufactured ultimate racing springs are manually selected for maximum precision, equal length, and equal damping characteristics
  • Small 4° caster C-blocks from special composite material, optional 2° and 6° caster blocks available
  • Small, robust steering blocks made from special composite material, featuring 2 Ackermann positions
  • Complete set of high-speed, blue-sealed ball-bearings are degreased and lightly oiled for maximum efficiency, individually controlled, selected, and inspected
  • Aluminium self-locking wheel nuts
  • Super easy to build, set up, maintain, and drive

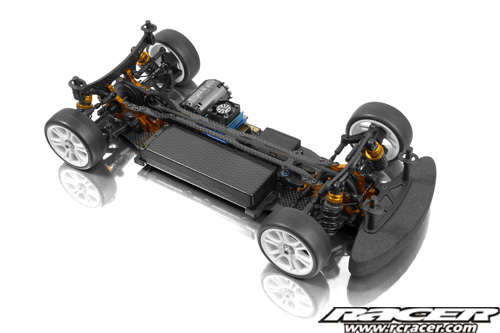

DSC7296

Adjustment Possibilities

  • Fully-adjustable front and rear suspension geometry: caster, camber, toe, anti-dive, anti-squat, ride height, droop, track-width, roll centre, wheelbase
  • Adjustable ball differential
  • Xray Quick Roll-Centersâ„¢
  • Adjustable front and rear bulkheads with belt-tension control
  • Front and rear diff height adjustment
  • Adjustable HUDY aluminium turnbuckles (steering, front & rear upper links)
  • Multiple upper and lower shock mounting locations at front and rear
  • Externally-adjustable racing shocks (4-step)
  • Pre-drilled chassis locations for optional chassis weights in centre of chassis
  • Adjustable front and rear anti-roll bars

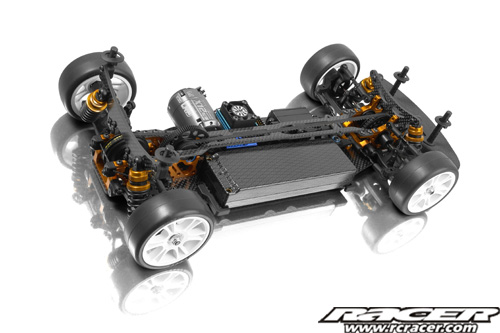

DSC7326



Source: Team Xray
