Avid Precision Springs for 1:10 Buggy and Truck

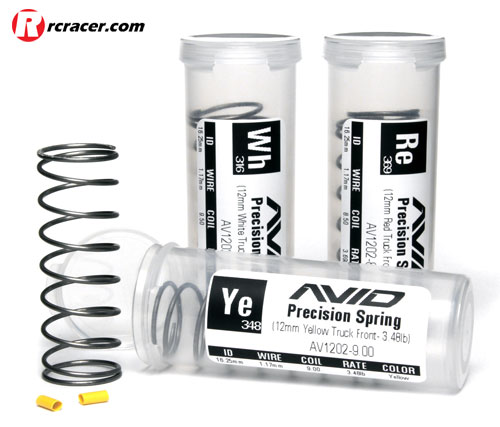

Avid has released these new precision made, high performance shock springs for 1:10 12mm shocks. These Avid springs offer several advantages over conventional shock springs. Firstly, the labels are custom printed to show the average spring rate (lb/in) for each batch of springs after they’ve passed Avid’s quality check. They ensure that the labeled rate on the packaging is as close as possible to the springs you are getting inside the bag. Avid springs are checked in-house with precision spring testing equipment. The springs are raw, un-coated ASTM spec spring wire which ensures consistent spring rates and prevents mis-matched spring pairs. and can be easily polished for a “factory” look. This prevents the rate being affected by the powder coating. Each set of front or rear springs uses identical wire diameter, varying only the number of coils. This allows for the tightest possible grouping of spring rates, and the most consistent production conditions from batch to batch. The springs come with pre-cut coloured heatshrink in a labeled snap-top tube for storage to keep each spring pair together.
These springs fit the TLR 22 and 22T, Kyosho RB5, RB5T, Durango DEX410, DEX210 and B4/T4/SC10 shocks converted for big bore springs (Avid spring cups #1012 and collar adapters #1014 coming soon). Spring sets will be available first with individual springs to follow.

Part #         Description                                                 Approx Rate*    Colour
1200-SET    12mm buggy/truck rear spring set (3 pairs)    —-                  White, Yellow, Red
1201-SET    12mm buggy front spring set (4 pairs)           —-                  White, Yellow, Red, Purple
1202-SET    12mm truck front spring set (3 pairs)             —-                 White, Yellow, Red
1200-12.50  12mm buggy/truck rear spring – 12.50 coil     1.85                White
1200-11.75  12mm buggy/truck rear spring – 11.75 coil     2.0                  Yellow
1200-11.00  12mm buggy/truck rear spring – 11.00 coil     2.15                Red
1201-9.25    12mm buggy front spring – 9.25 coil              2.65                White
1201-8.50    12mm buggy front spring – 8.50 coil              3.05                Yellow
1201-7.75    12mm buggy front spring – 7.75 coil              3.3                  Red
1201-7.25    12mm buggy front spring – 7.25 coil              3.6                  Purple
1202-9.50    12mm truck front spring – 9.50 coil               3.25                White
1202-9.00    12mm truck front spring – 9.00 coil               3.45                Yellow
1202-8.50    12mm truck front spring – 8.50 coil               3.70                 Red

*rate will vary slightly and will be published on the label

Source: Avid RC
