Intro Serpent 1:8 Buggy Project With Billy Easton
Below the fourth of four interviews with Billy Easton the designer / racer of the Serpent 1:8 buggy. The Serpent 1:8 buggy is the first move into the off-road market, to be followed by a Truggy and electric versions, as well as Ready To Race cars in the near future. Design-wise Billy Easton works closely together with Michael Salven. With Michael being the expert in gas on-road, Billy will perform this task for the off-road projects. In this way true experts look after the class they know best and actively race in and can support best. Still sharing idea’s and knowledge to create the very best RC racing cars around.
Billy Easton – Stage Four Interview
Can you give us some more details on the Serpent Cobra, please explain in detail some of the concepts…
Aerodynamics: Body and Rear Wing

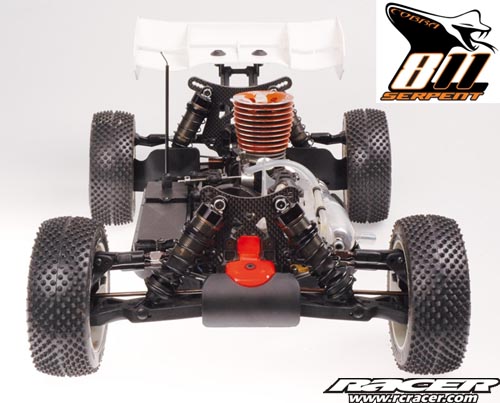

The body game has been stepped up a little. We really tried our best to provide the customer with a body that they would not have any reason to want to upgrade to an aftermarket version. Our body is extremely low profile and also fits the car super tight in all the right places. The cab and sides are equal in proportion. The rear of the body has additional down force, which helps guide additional air to the rear wing. When driving the car for sure you will enjoy the super low profile. To me it reminds me a lot of the Old Yokomo Works car that had a super low profile body. The wing has a combination of different foils. It also has two fins inside of the side dams to aid in keeping the rear of the car where it’s supposed to be. So far in testing, the wing most definitely provides great side grip and is very controllable while flying through the air.

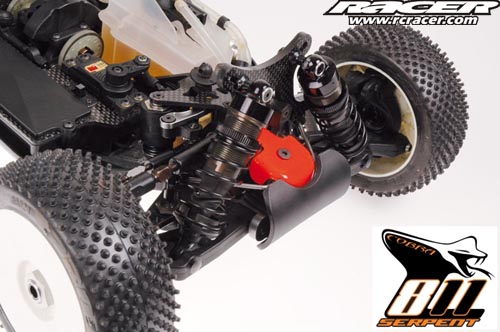

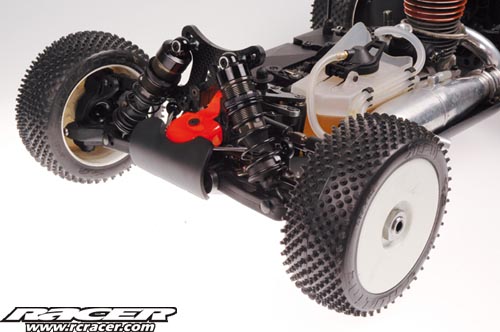

The kit anti roll bars are conventional but ballraced, with bent piano wire that have laser engraved lettering. We have an additional anti roll bar kit that we will sell as an option that is very advanced and even easier for customers to adjust the wire sizes on the fly. Also the sway bars ride on ball bearings to insure they never get sloppy and will also provide consistent control.
The car uses excellent industry standard rubber sealed bearings. In testing thus far they have been very durable and have taken far more abuse than some others I have tested on other vehicles.

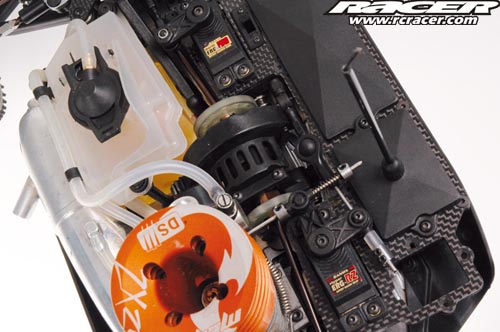

Our fuel tank utilises a floating clunk design to help you out, if you get turned over and stuck upside down for extended time. The tank top has an overflow to help guide any unwanted fuel out the bottom of the car. The tank lid has been designed in a way to minimise splashing and keep the fuel off critical parts inside the vehicle.
The transmission is all captured. You will not have to worry about loosing a pin in long mains or even at local events. It was designed so that no matter what, your drivetrain should stay assembled so you can finish any event duration without troubles. The drive shafts have been made of tool spring-steel and coated with the factory brown finish. They are also laser etched with identification marks. You will not be disappointed in the quality and strength here.
The brake system has been simplified to help you set your brake system the same every time, no matter how many cars you build. The parts have also been lowered to help keep the CG as low as possible. It uses a piston system and provides superior braking like you have never felt before. We will also have many optional brake upgrades available later to fine tune the braking system like you have never been able to in the past.

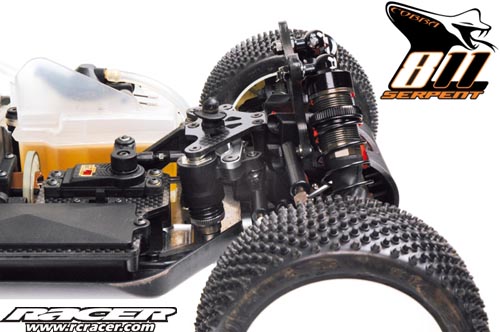

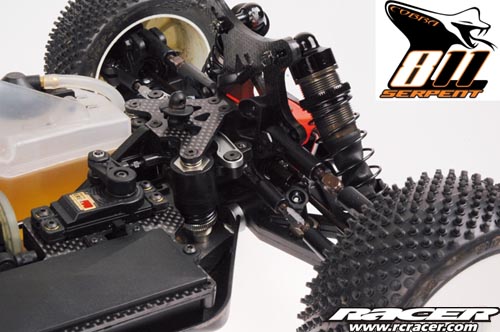

All the linkages and also camber links have been captured so you never have to worry about a ball cup popping off when you are on that TQ run. This car had one thing in mind, in order to win, you must finish. With all details in mind even on the steering links, be rest assured our goal was to create something even the lesser skilled driver could win with.

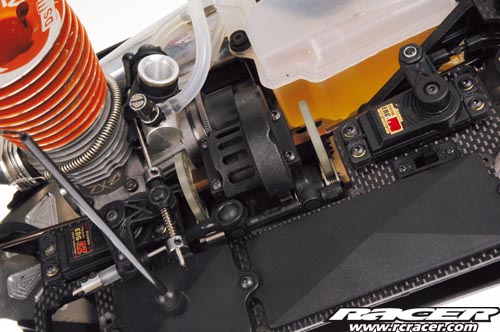

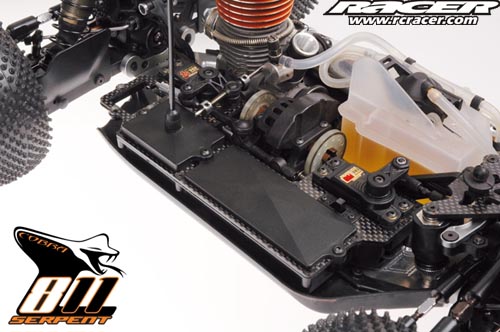

The electronics instalment is a little tricky the first time. You have a couple new things you have never had to do before. So for some it will be a bit foreign, however after you do it a time or two you will appreciate the packaged unit you get when you finished. The assembly is very clean, very tidy and simple if you want to remove it from the car. You do not have parts that look like they are just barely hanging on and out of place.
Chassis / Chassis Stiffeners / Flex Control

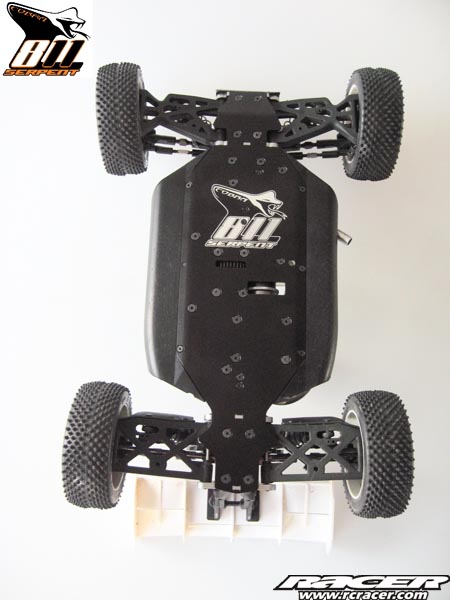

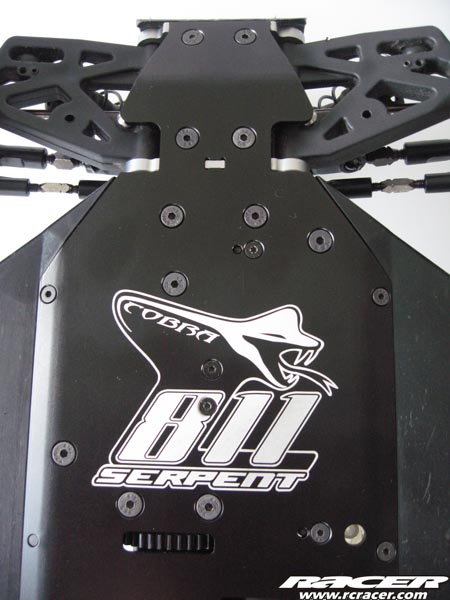

After lots of testing we believe that the plastic stiffeners that are provided in the kit control the flex in all the right places to help you make it through the roughest terrain. The car is not too rigid, but also is not too flexible. As you may have found on some cars, the chassis is easily damaged and looks like a banana after only a few jump landings. I do not think you will be disappointed in the end flex control and longevity of your chassis due to the design.
Thanks for the in depth information on the Serpent Cobra. Even more details about each aspect will be published on the Serpent web-site too.
We shall be keeping you up-to-date with the progress of the Serpent Cobra
Source: Team Serpent
