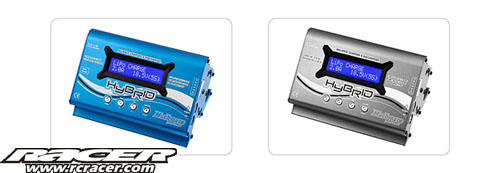

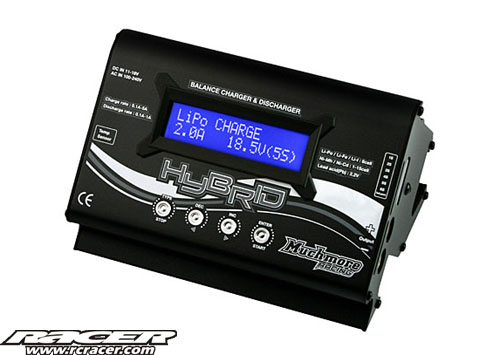

Much-More Racing Hybrid Balance Charger And Discharger



Much-More Racing have a new Hybrid Balance Charger And Discharger available. Suitable for a 12VDC or mains input it will take care of most batteries used in RC racing and will discharge, balance and cycle too. Check out the specification and features below and for more information, click on the source link.


MM-HBK / HBB / HBS Hybrid Charger Features

  • Super compact design
  • Microprocessor controlled
  • AC/DC Input voltage circuit
  • Special Blue LCD screen
  • Individual Lithium Cell Balance circuit
  • Individual Cell voltage real time Monitoring
  • Lithium batteries Fast charge / Storage Mode
  • Cycling Charge / Discharge
  • 5 batteries data store / data load
  • Maximum safety




  • Operation voltage: DC11~18 volts | AC100~240V | 50/60Hz
  • Charge / Discharge power: Max 50Watts
  • Number of cells: NiCd / Mh 1~15cells, LiIo / LiPo / LiFe 1~6 series,Pb2~20V
  • Charge current: 0.1 ~ 5.0A
  • Discharge current: 0.1 ~ 1.0A
  • Cycling number: 1 ~ 5
  • Data storage number: Max 5
  • Weight: 670g
  • Dimensions: 137 x 99 x 83mm


Source: Much-More Racing

Share →

One Response to Much-More Racing Hybrid Balance Charger And Discharger

  1. JC Bever says:

    I have a brand new Hybrid Charger by Muchmore racing, which includes the manual. I’m having a hard time understanding the manual and would like to know if there is additional information on how to use this charger. Would like to watch any video on how to charge/discharge Ni-MH batteries. Thanks, JC
