Novak M2 DIG Speed Controller

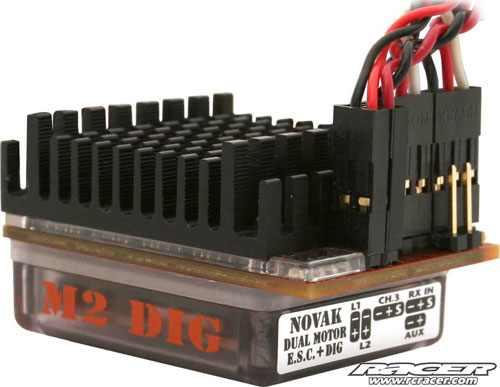

Novak-M2-DIG

After much fine-tuning, Novak has released their brand new M2 Dig 3S Dual Brush speed controller. This patent-pending, new controller combines six adjustable parameters, including a separated drag brake and dig function. With only the addition of two brushed crawler motors, the M2 Dig controls both motors and performs dig maneuvers. In addition to the standard Dig Mode, the M2 features a Proportional Dig Mode which allows you to dial-in partial Dig Power on the fly for even finer control and precise maneuverability through tricky terrain. It also features exceptional control on steep inclines and descents. Plus, the built-in electronic Dig Power is independently adjustable from the Hill/Drag Braking.

Features:

Fully programmable, user-friendly interface with six adjustable parameters
Hill/Drag Brake (10 options), Dig Power (10 options), Dead Band (5 options), Minimum Drive (5 options), Drive Frequency (10 options) and Voltage Cut-Off (Off/LiPo/LiFe)
Three throttle profiles: Dig Mode, Proportional Dig Mode, and Single Output Mode
Independently powers the front or rear motors in a dual-motor crawler vehicle
Operates on both 2S and 3S applications
Instant reverse via Novak’s Zero Reverse Delay providing immediate power delivery in both forward and reverse
Compatible with optional Novalink (#5440) for expanded programming and ability to download firmware updates to the ESC
Internal high-voltage 5-Amp Linear BEC
Universal JST Input Plug for Ch.2 and Ch. 3, which fits all popular brand receivers
Water-resistant case with silicone gasket seal
Thermal Overload Protection
Features a set of power output pins for running cooling fans, auxiliary lights, scale winches, etc

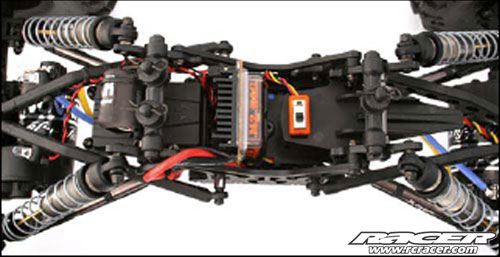

Novak-M2-DIG-installed

Specification:

Input Voltage: 2-3 LiPo/LiFe cells/4-9 NiMH cells (1.2V/cell)
ESC Footprint: 29.5×37.3mm
ESC Weight (w/o wires): 36.9g
Motor Limit: 33-turn (dual) or 27-turn (single) 540-sized brushed motors
BEC: 6V DC/5A
On-Resistance: 0.0016 (dual); 0.0008 (single) ohm
Status LEDs: Four on-board/two external
Voltage Cut-Off: 2S LiPo: 6.25V; 3S LiPo: 9.38V (Automatic)
Power Wires: 14G Super-Flex Copper-Strand Silicone Wire

#1846 M2 Dig 3S Dual Brush ESC
#1845 M2 Dig 3S ESC/Dual Terra Claw Brush Motor Combo

Source: Novak
