Thunder Power Dual Port Multi-Function Charger


The all-new TP820CD is the first ever dual port, most powerful and most advanced multi-chemistry charger, discharger, cycler and balancer system from Thunder Power RC to date. With up to 800 watts of total charging power, nearly four-times that of their ever-popular TP1010C, the TP820CD is equipped with two ports that function completely independently to charge, discharge and cycle a wide variety of 1-8S LiPo, LiIon and LiFe (A123) batteries, as well as 1-24 cell NiCd and NiMH along with 6-30V Pb (lead acid) batteries. The built-in 2-8S LiPo/LiIon/LiFe (A123) cell balancers, one for each port, and included balance connector adapter boards are readily compatible with all Thunder Power balance connectors and the JST-XH balance connectors found on many other batteries.


Here is a full rundown of the TP820CD’s specification:


Type: Dual Port Multi-Chemistry DC Charger/Discharger/Cycler with Integrated Balancers
Battery Cell Counts/Types (Per Port): 1-8S LiPo/LiIon/LiFe (A123), 1-24 cell NiCd/NiMH and 6-30V Pb (lead-acid)

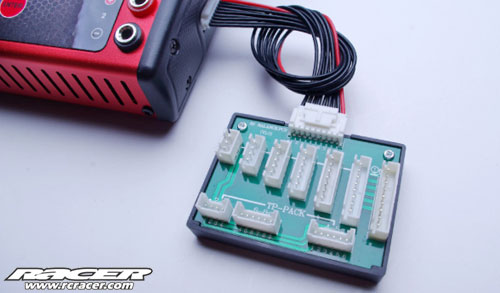

Balancer (Per Port): Integrated for 2-8S LiPo/LiIon/LiFe (A123) with balance connector adapter board for Thunder Power and JST-XH connectors
Input Power: 10.5-28.0V DC (40 amps max)
Charge Power: 800 watts max (400 watts max per port) w/24.0-28.0V input (see manual for additional information regarding input and output power)
Charge Current (Per Port): 0.2 to 20 amps in 0.01 amp increments
Charge Voltage: 50% storage and adjustable end voltage for LiPo/LiIon/LiFe (A123), adjustable delta peak sensitivity and end voltage for NiCd/NiMH and end voltage for Pb (Lead Acid)
Discharge Power: 100 watts max (50 watts max per port)
Discharge Current (Per Port): 0.2 to 10 amps in 0.01 amp increments
Discharge Voltage: Adjustable low voltage cutoff for LiPo/LiIon/LiFe (A123), NiCd/NiMH and Pb (lead-acid)
Cycles: 1 to 15 times with data stored for all cycles
Memories: 24 user-programmable

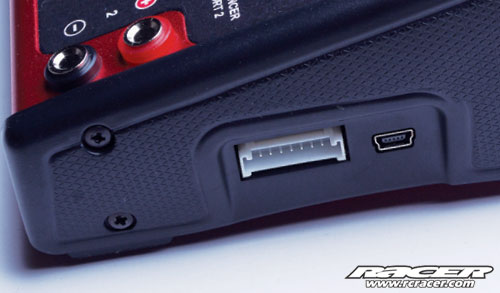

Firmware: Future updates via USB

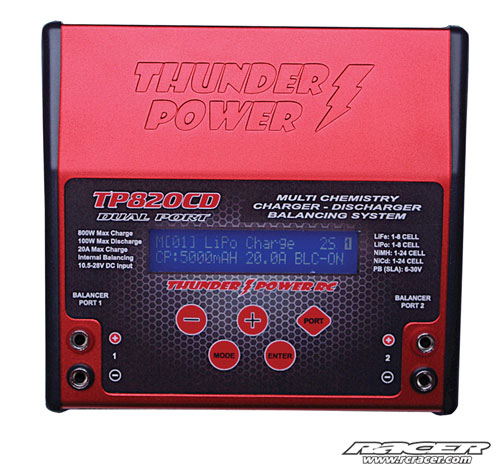

TP820CD Thunder Power Dual Port 20 Amp and 800 Watt multi-function charger

Source: Thunder Power
