Dynamite Passport Ultra AC/DC Charger And Cycler

By admin On December 22, 2009 · Add Comment

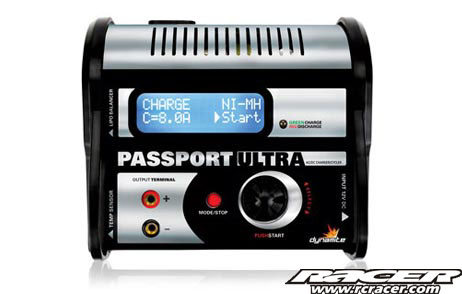

Dynamite Passport Ultra AC/DC Charger And Cycler

b_charger

Dynamite’s Passport Ultra AC/DC charger/cycler brings to the market a compact, feature-packed charger at a price point that blows the competition away. With features such as Integrated Balance Technology, 1-6S LiPo, LiIon, Pb, and LiFe charging capabilities, 1-14 cell NiMh and Ni-Cd charging as well as AC/DC operation, this charger represents the ultimate multi-purpose charger/cycler. Need a charger with a high current charge rate? Look no further as the Passport Ultra ‘brings it’ with an 8-amp charge rate and a 5-amp discharge rate, providing extremely quick charge and discharge times. Other features include jog dial navigation, a removable power cord, and a built-in temp sensor for added safety and security. In addition to its long list of features, the Passport Ultra looks as good as it performs with an anodised aluminium faceplate and a durable outside casing.

Passport Features

Integrated 1-6S LiPo balancer
8-amp charge rate provides quick charge times
5-amp discharge rate
AC/DC input provides flexible charging capabilities
Blue backlit screen for easy viewing
Charges 1-6S LiPo/LiIon /LiFe, 1-14 cell NiCd/NiMh, 2/6/12V Pb batteries
Jog dial navigation provides easy navigation of menu
Built-in temp sensor provides safe charge cut-off option
Removable power cords allow use of only the power cord needed
JST-XH balance connector type works with many of today’s popular LiPo batteries (THP and Losi balance adaptors available separately)
Included adaptors feature charge outputs for Deans Ultra plugs, Tamiya plugs and Tamiya to receiver and BEC-style adapters (Deans and Tamiya plugs feature banana output terminals)
12-bit CPU controller provides precise operation
Last setting parameter memory
Reverse and short circuit protection
100W power supply supports extremely powerful charge rates and easily outperforms competing chargers rated at 50 watts or lower

Specification

Type: AC/DC Charger/Cycler
Input: 100-240V AC Or 12V DC
Number Cells: 1-6 cell LiPo/LiIon/LiFe, 1-14 cell NiCd/NiMH, 2/6/12V Pb batteries
Peak: Yes
Current Discharge: 0.1 to 5.0A
Charge Rate: 0.1 to 8.0A
Trickle Charge Rate: 50-200mA or Off
Output Connector: Banana Plug
Battery Type: LiPo/LiIon/LiFe/NiCd/NiMH/Pb
LCD: Blue Backlit 16 Character Display
Discharge: Yes, Cut- off Adjustable
Overload Protection: Reverse and short circuit
